Model: EM129
[2007 catalog B] [Page 49]
·Data hold function
·Autorange function for the test
·Overload protection for all range
·Auto power off
CAT II
The instrument complies with CAT II 600.
CE
Tacho Test
DC Voltage:200m/2/20/200/1000V
AC Voltage:200/750V
DC Current:20m/200m/10A
Resistance:200/2k/20k/200k/2M/20MΩ
Frequency:20kHz
Temperature:-20?C ~ 750?C (-4°F to 1382°F)
Dwell:3-4-5-6-8CYL
Tacho:3-4-5-6-8CYL ( x 10rpm)
hFE:Vce≈3V, Ib≈10μA
Diode Check:3V / 1mA
Power:9V battery (6F22)
Dimensions(W×L×T):97×200×48 mm
Weight:495g (with battery)
525
|
Model: EA100
[2007 catalog B] [Page 54]
Simple to use, just clamp the spark plug wire.
This unit is designed to be used with automotive meter or oscillograph. It can be used in the adjustment and diagnosis of automotive engine. It is an ideal tool when you want to know the accurate turning speed of the engine. Simple to use, just clamp the spark plug wire.
Used with automotive meter or oscillograph
CE
Power:1.5V(AA) Battery × 6
Dimensions(W×L×T):95×195×55 mm
Weight:620g (with battery)
187
|

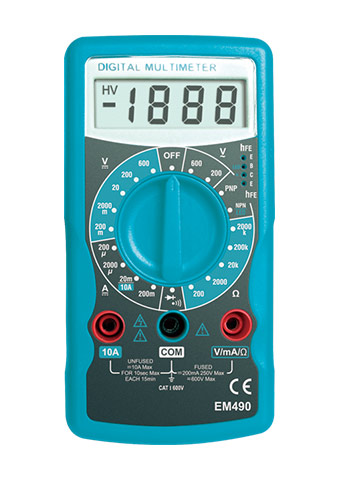

Model: EM490
[2007 catalog B] [Page 25]
·3 1/2 digits LCD,Max.reading of 1999
·Low battery indication
·Overload protection
·Audible continuity
CAT I
LED TEST
Voltage DC:200m/2/20/200/600V
Voltage AC:200/600V
Current DC:200μ/2m/20m/200m/10A
Resistance:200/2k/20k/200k/2000kΩ
LED Test:Yes
hFE:Vce≈3V, Ib≈10μA
Continuity:Yes
Diode Check:2.8V/1mA
Power:9V battery (6F22)
Dimensions(W×L×T):66×127×26 mm
Weight:106g (with battery)
81
|

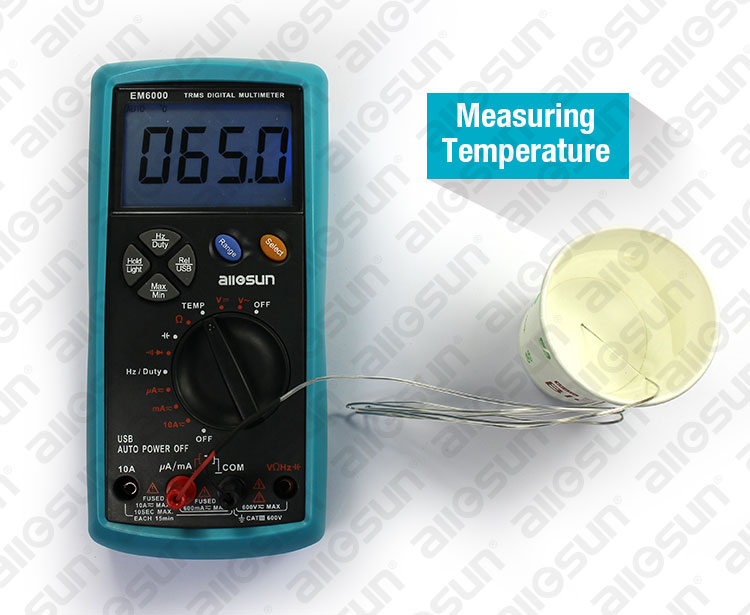

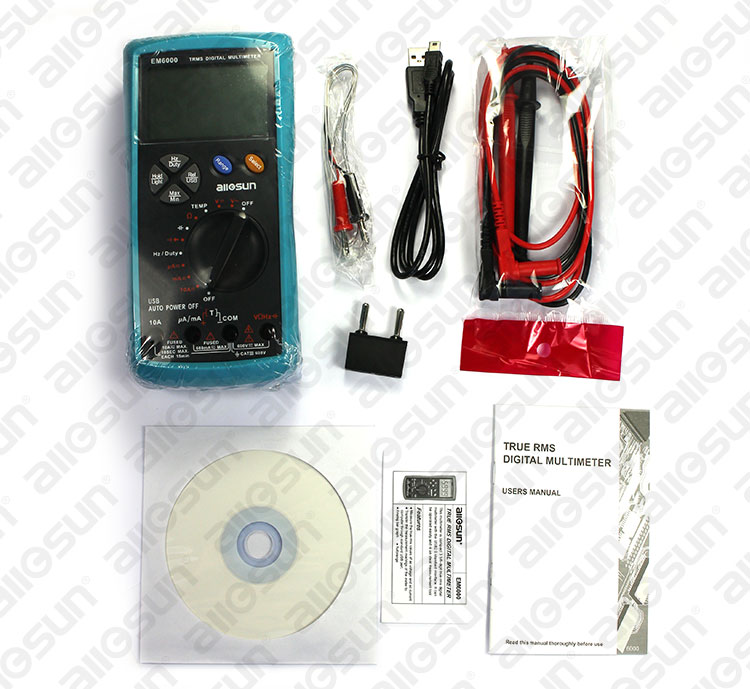

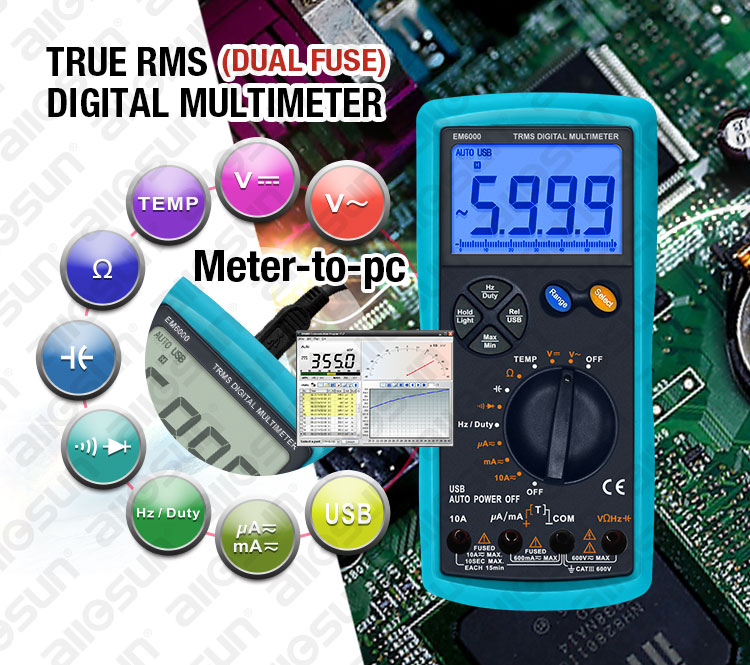

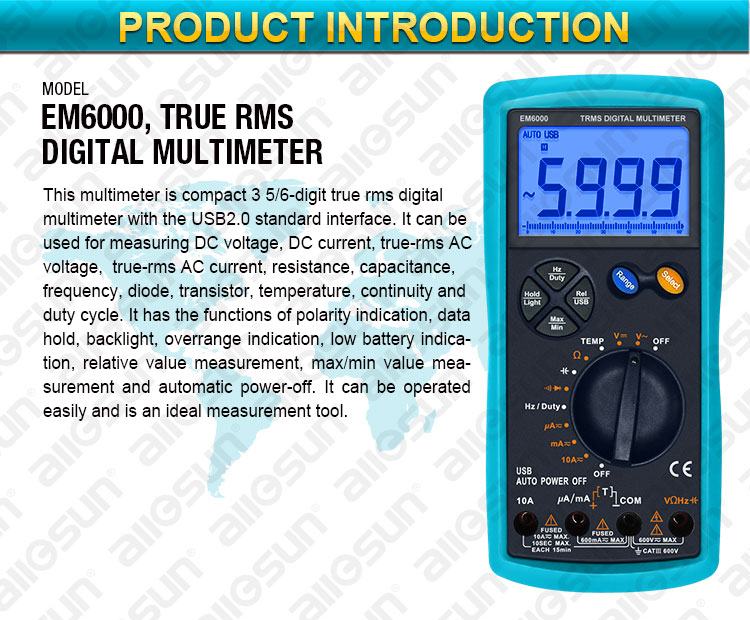

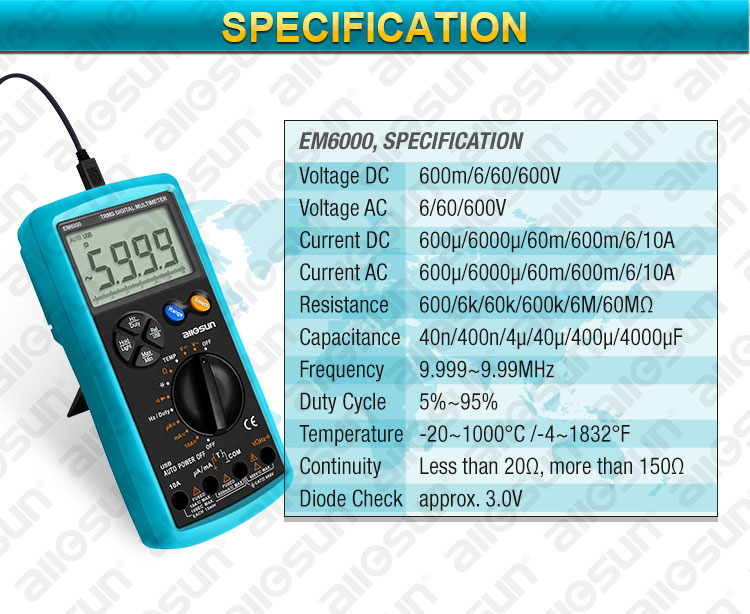

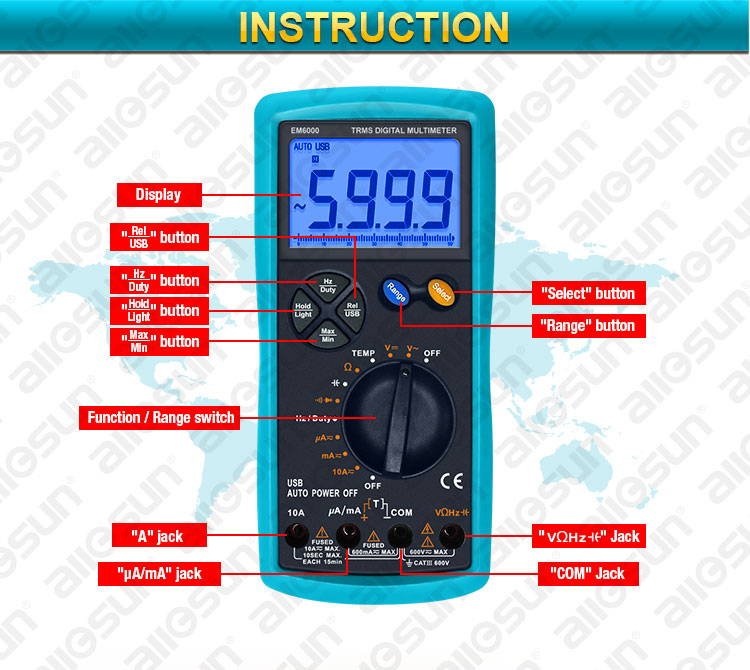

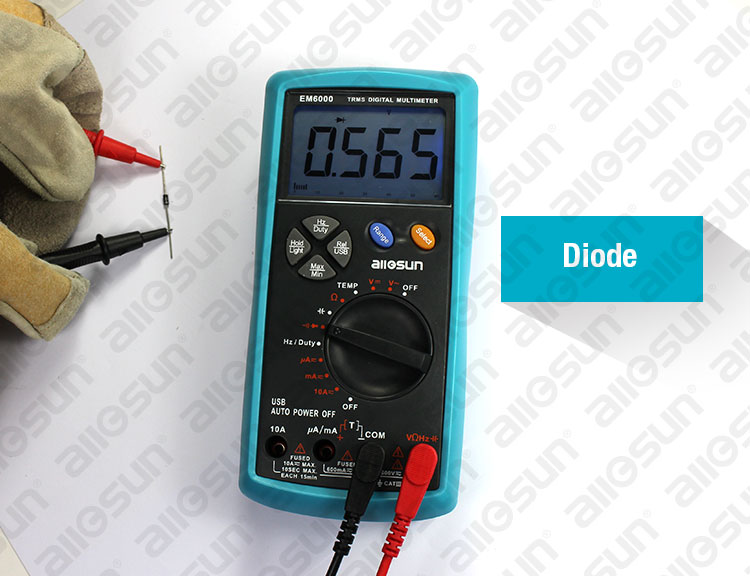

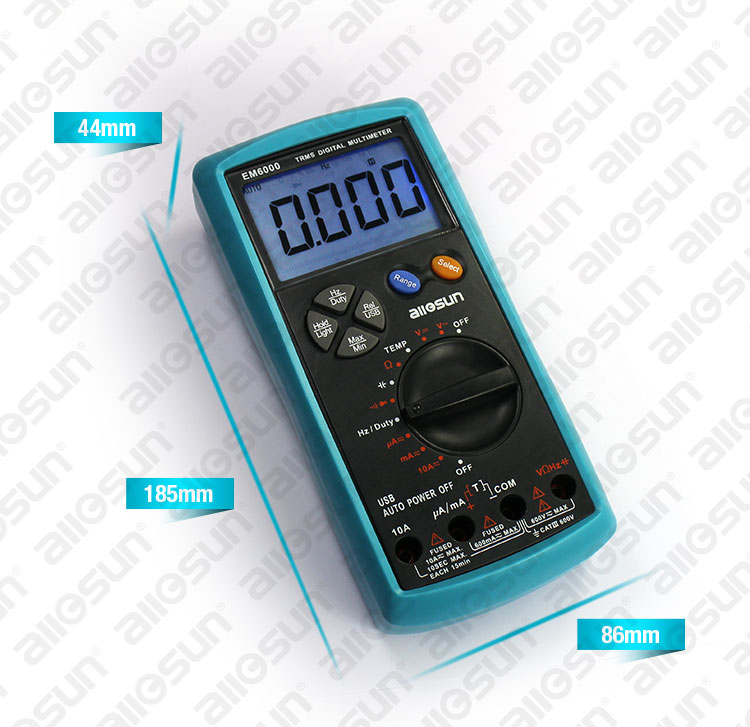

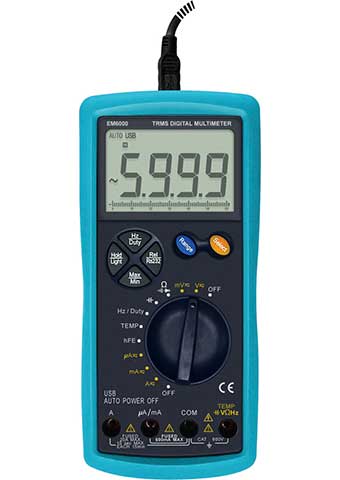

Model: EM6000

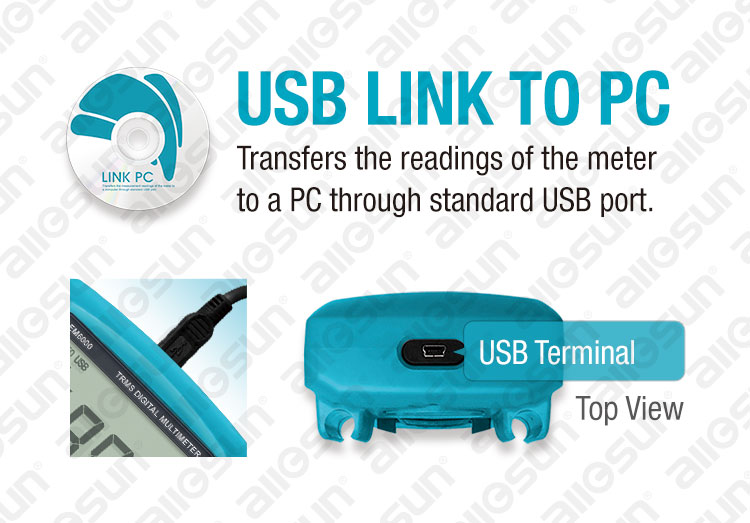

- GS Marking - GS marking, GS certification, GS approval, European directive and standards ● LCD display, Max.displayed value: 6000(frequency: 9999) ● Measures the true-rms values of AC voltage and AC current. ● Transfers the measurement readings of the meter to a computer through standard USB port ● Data-hold mode ● Analog bar graph(61 segments), reading unit indication and backlight ● Automatic polarity indication ● Manual range mode and autorange mode ● Automatic/manual power-off ● Relative value measurement ● Max./Min. measurement ● Overload protection, CAT III 1000V ● Provides low battery indication PC Software interface of EM6000Connect the USB data cable supplied with the meter to the terminal on the top of the meter, connect the other end of this cable to the USB port of the computer. Power supply: 9V(6F22) battery × 1pc Dimensions: 185(H)×86(W)×44(D) mm Weight: Approx. 380g (battery included
|

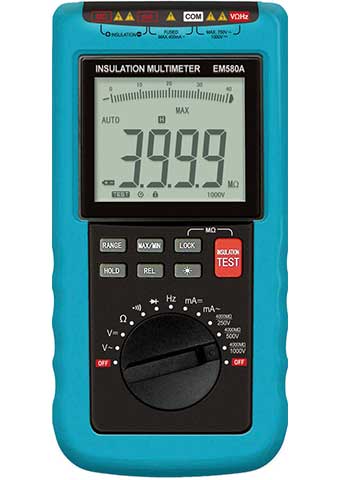

Model: EM580A
CE Certification
This autorange digital meter is a battery-powered multimeter with insulation measurement. It is applicable to measurement of resistance, motor coil, transformer, printed circuit board.
● Insulation measurement
● Autoranging
● 43 3/4 digit,4000-count large display
● Analog bar graph, reading unit indication and backlight
● Automatic polarity indication
● Manual range mode and autorange mode
● Low battery indication
● Relative value measurement
● Max./Min. measurement
● Overload protection
● Auto/manual power-off
● Data-hold mode
MegOHM
Very useful in malfunction check and preventive service.
MegOHM (Insulation Test):
Measurement Range: 0.1MΩ to 4000MΩ
Test Voltages: 250V, 500V, 600V
Voltage DC: 400m/4/40/400/600V
Voltage AC: 400m/4/40/400/600V
Current DC: 40m/400mA
Current AC: 40m/400mA
Resistance: 400/4k/40k/400k/4M/40MΩ
Frequency: 4kHz/40kHz/100kHz
Continuity: Buzzer sounds <30Ω
Diode Test: approx. 3.0V
Power supply: 1.5V(AA) battery × 6pcs
Dimensions: 200(H)×100(W)×56(L) mm
Weight: Approx. 620g (battery included
23
|

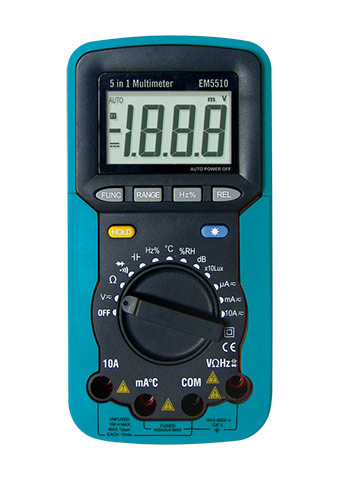

Model: EM5510
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
EM5510 autorange backlight DMM combines a high accuracy 3 3/4 digits digital multimeter.
CATII
/ CE
5in1 Humidity, Temperature,Sound Level, Light, DMM
Power:9V battery (6F22)
Dimensions(W×L×T):83×162×47 mm
Weight:310g (with battery)
|

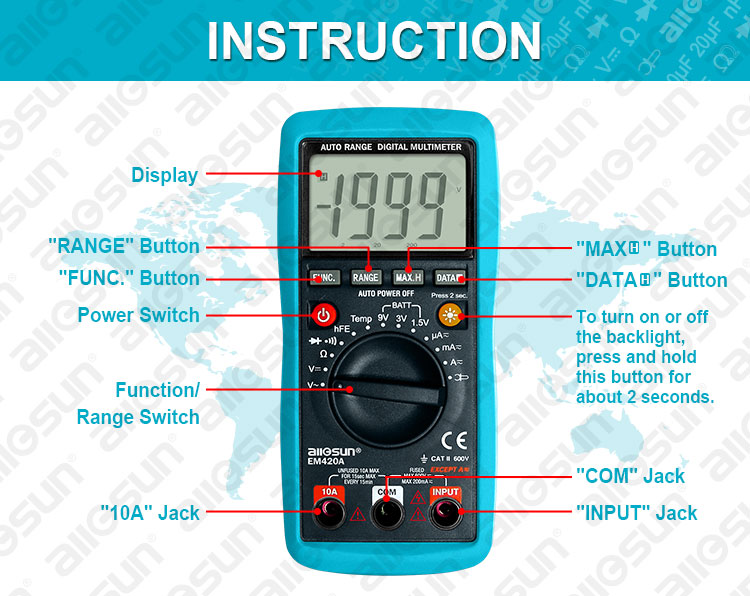

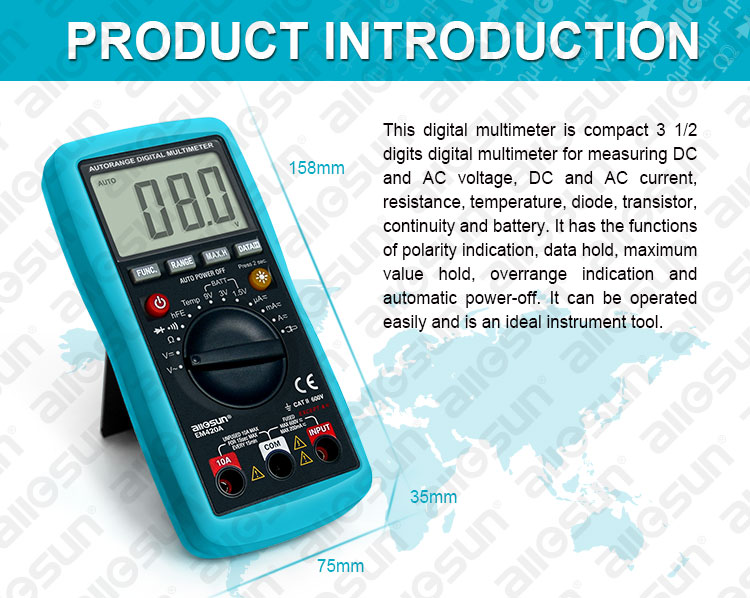

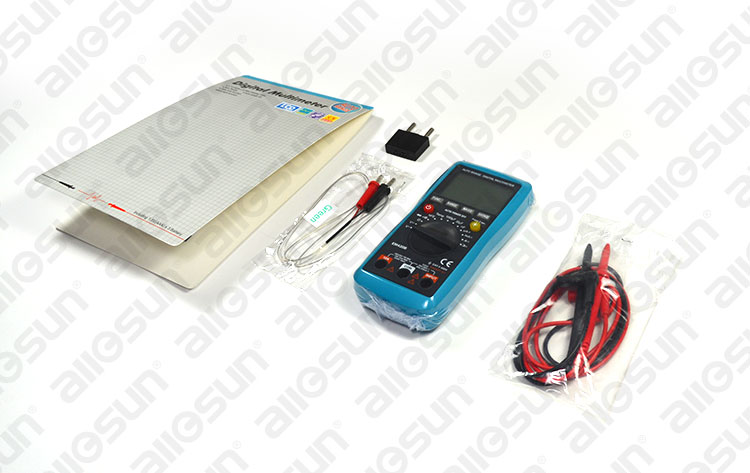

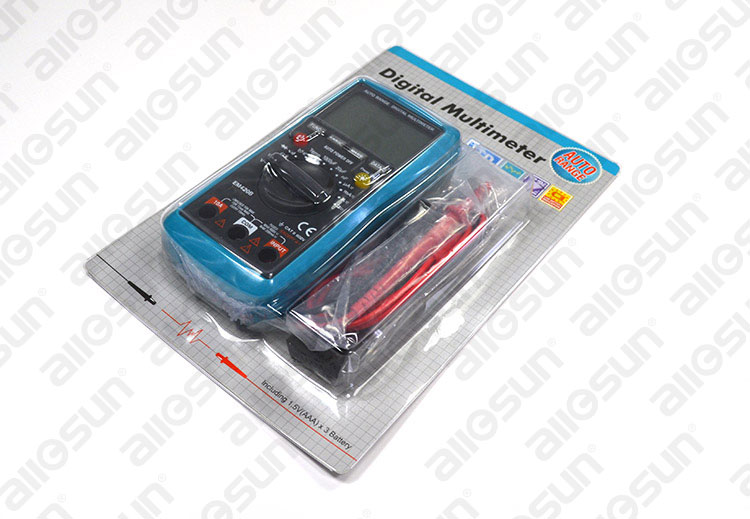

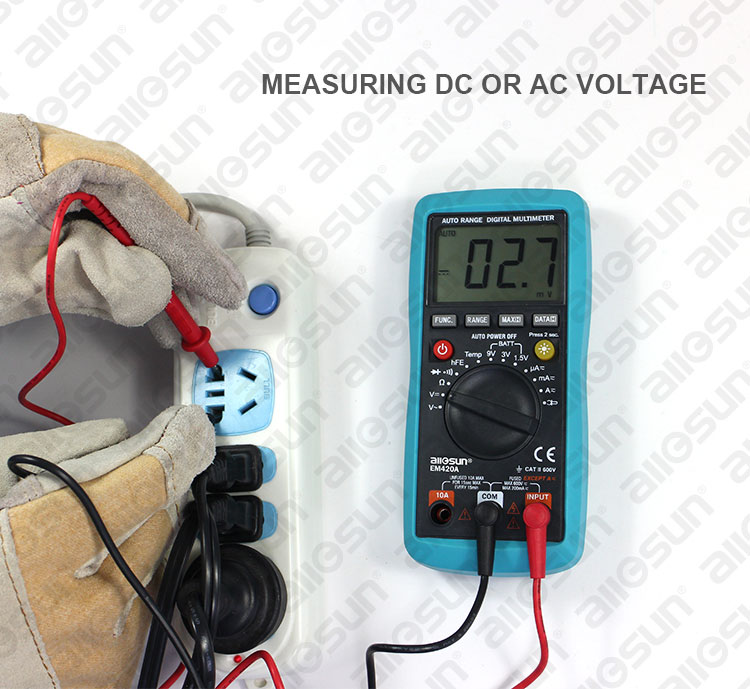

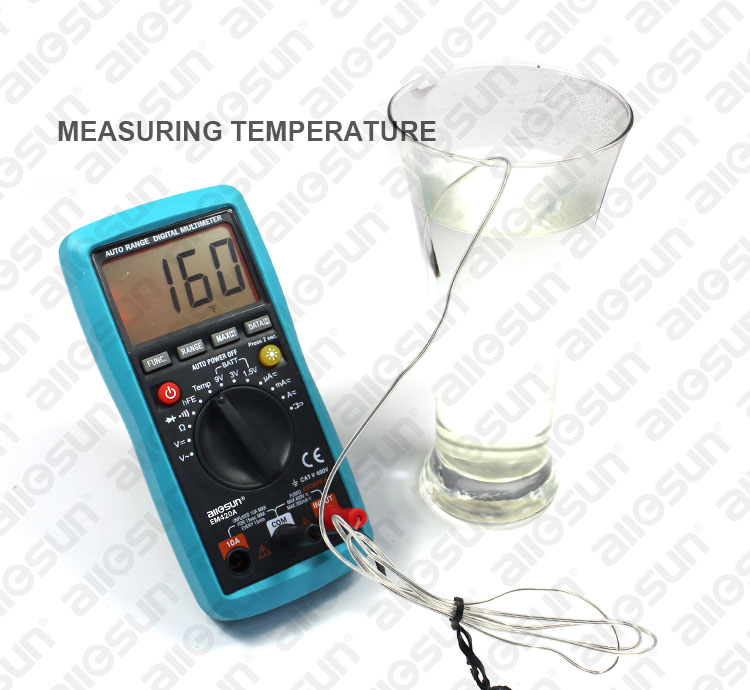

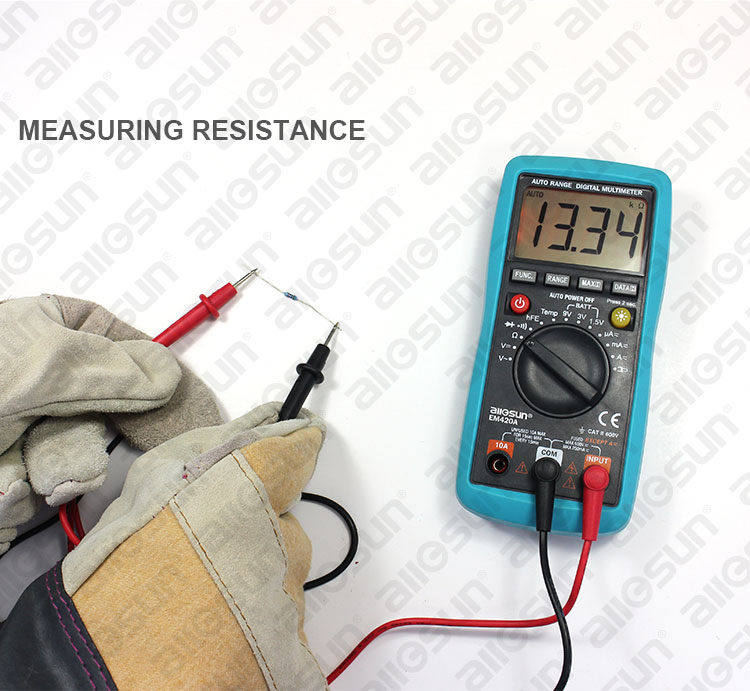

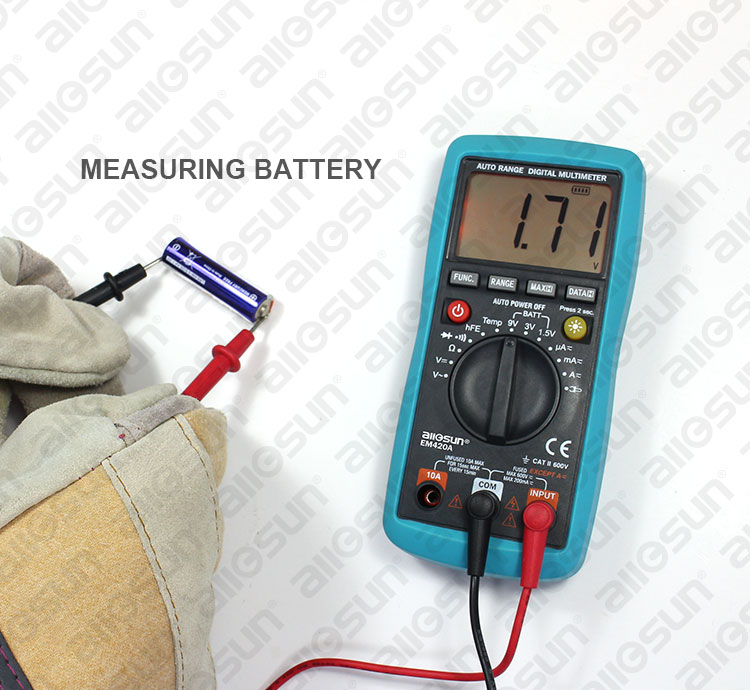

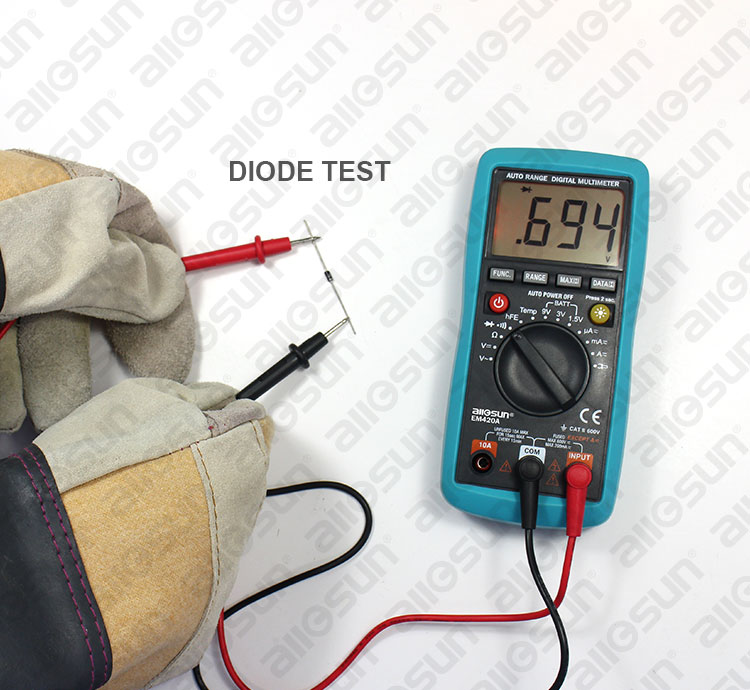

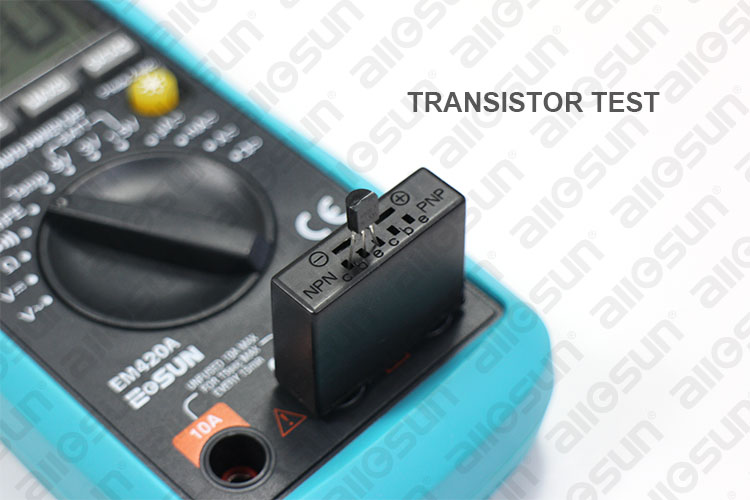

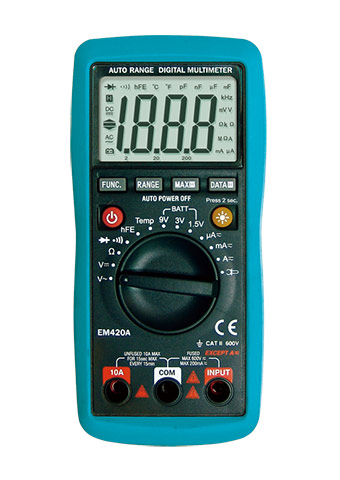

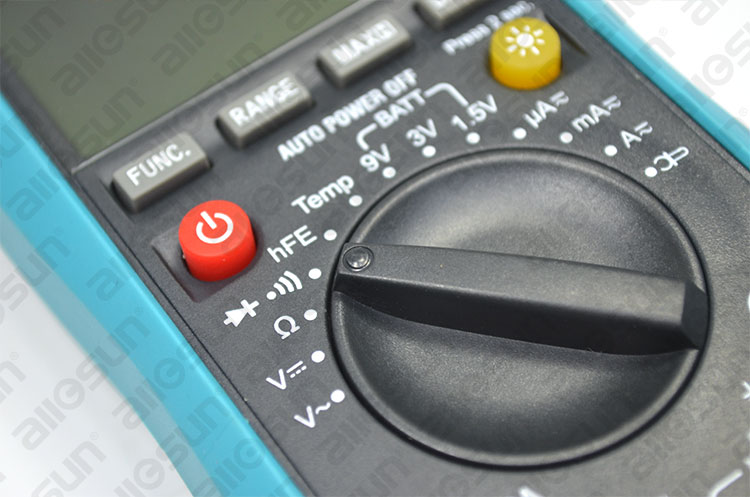

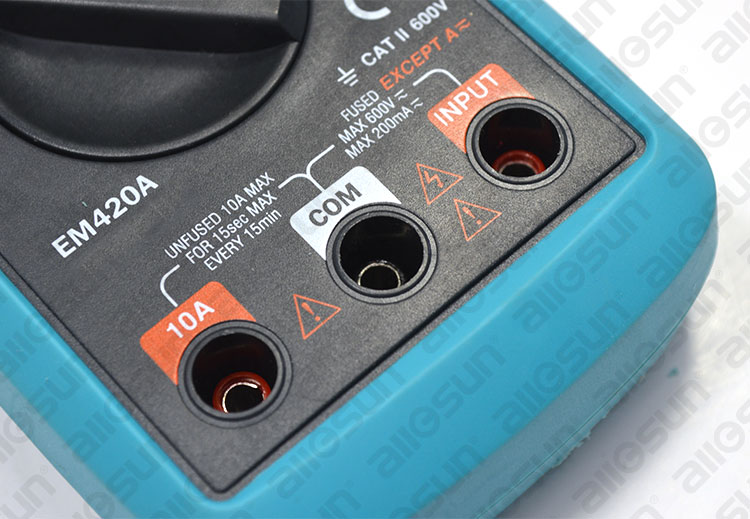

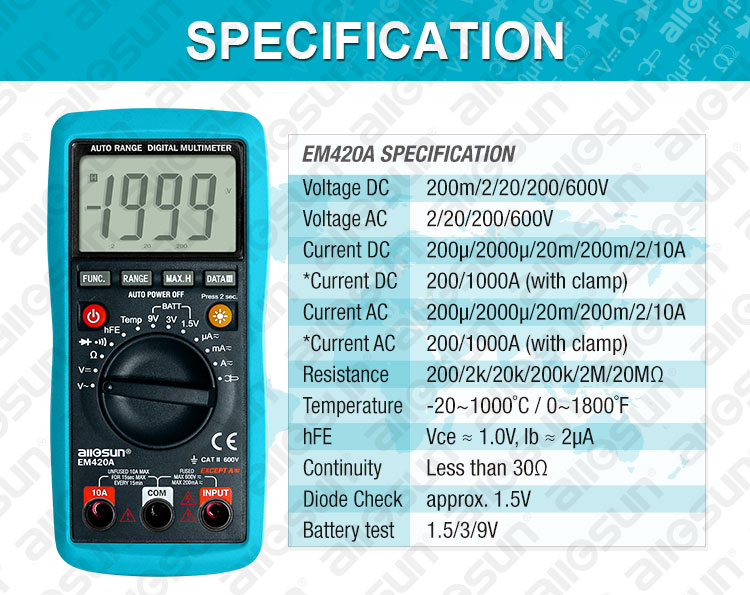

Model: EM420A
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
CAT II / CE
Auto Range

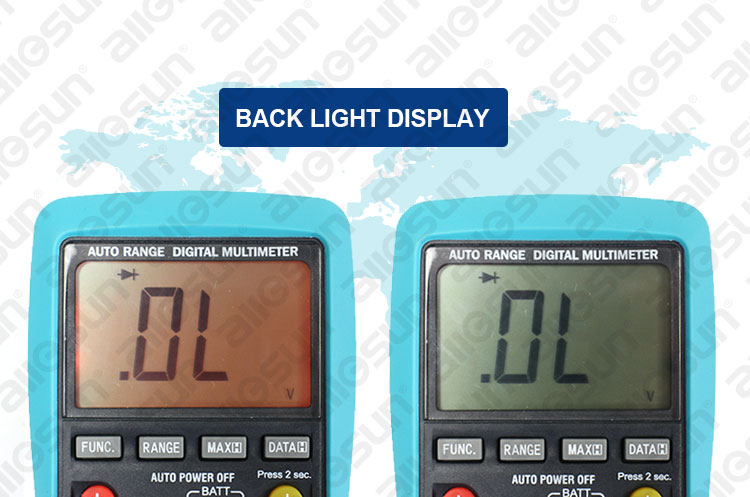

·3 1/2 digits LCD.Max.reading 1999, backlight
·Auto/manual range selection
·Data-hold function
·Auto Range, Auto power off

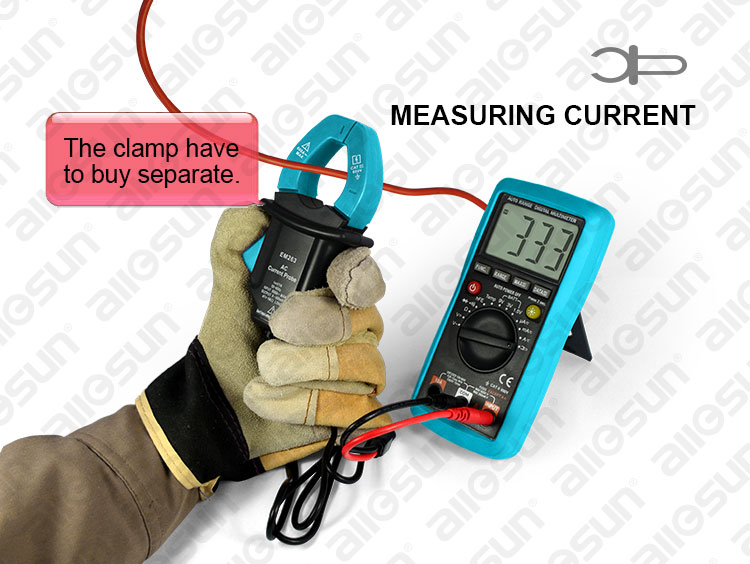

·With clamp
Power:1.5V(AAA) × 3
Dimensions(W×L×T):75×158×35 mm
Weight:200g (with battery)
|
Model: EM330
[2007 catalog B] [Page 42]
·Pocket size and light weight
Battery check
Recessed input terminals for safe use
CE
0
|

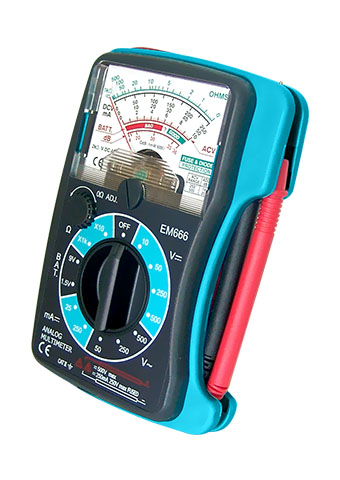

Model: EM666
[2007 catalog B] [Page 42]
·Pocket multimeter
·Battery check
·Full measurement ranges protection
·moulded rubber casing
CE
Voltage DC:10V/50V/250V/500V
Voltage AC:50V/250V/500V
Current DC:25m/250mA
Resistance:Rx10/Rx1KΩ
Battery Check:1.5V, 9V
dB:4 to 56dB
Fuse:0.5/250V, 5×20mm fast acting
Power:1.5V(AA) Battery
Dimensions(W×L×T):90×120×28 mm
Weight:180g (with battery)
0
|

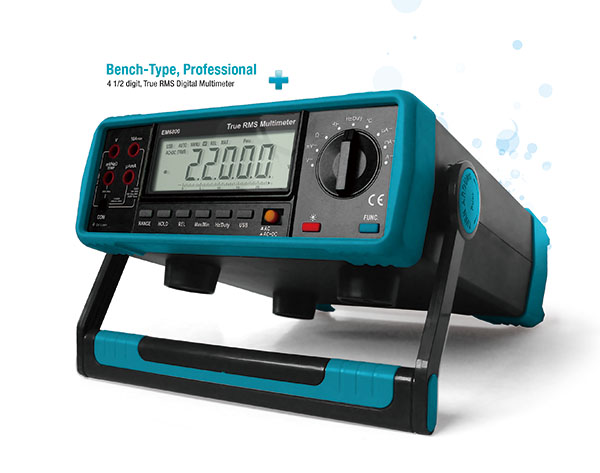

Model: EM6800
4 1/2 backlight LCD display,Max.reading 22000.Backlight
AC/AC+DC measure
46 swift simulant bars display
True RMS,Data-hold function
USB interface & software
Auto range,Auto power off
Relative function
Max./Min. function
DC Voltage: 220m/2.2/22/220/1000V
AC Voltage: 220m/2.2/22/220/1000V
DC Current: 220μ/2200μ/22m/220m/10A
AC Current: 220μ/2200μ/22m/220m/10A
Resistance: 220/2.2k/22k/220k/2.2M/22MΩ
Capacitance: 22n/220n/2.2μ/22μ/220μ/2.2m / 22mF
Frequency:220Hz/22kHz/220kHz/2.2MHz
Duty Cycle:5~95%
Temperature(°C): -20°C ~ 1000°C / 0~-1832°F
Continuity: Buzzer sounds<30Ω
Diode Check:approx: 2.8V
0
|
Model: EM616
·Ethernet Communication Interface
·Records measured data and exports them in many formats
Lots of data graphs
·Select desired sampling period and whether to record repeated data
·User can set high/low alarm limit
·Data retrieva
SPECIFICATION
Voltage DC: 600m/6/60/600V
Voltage AC: 600m/6/60/600V
Current DC: 600μ/6000μ/60m/600m/6/10A
Current AC: 600μ/6000μ/60m/600m/6/10A
Resistance: 600/6k/60k/600k/6M/60MΩ
Capacitance: 40n/400n/4μ/40μ/400μF/4000μF
Frequency: 9.999/99.99/999.9/9.999k/99.99k/999.9k/9.999MHz
Duty Cycle: 5% to 95%
Temperature: -20~1000°C/-4~1832°F
Diode Check: Yes
Contin: Yes
Power Supply: 9V, 6F22 battery×1pc
Dimensions: 188×96×55 mm
Weight: Approx. 430g
0
|

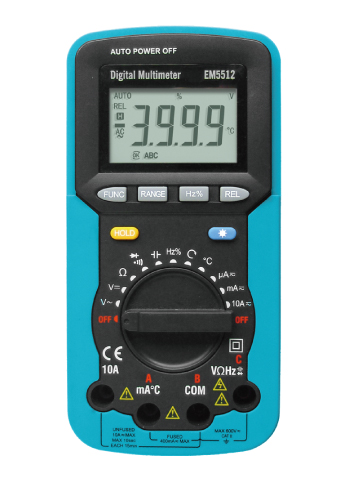

Model: EM5512
Voltage DC:400mV/4V/40V/400V/6
0
|

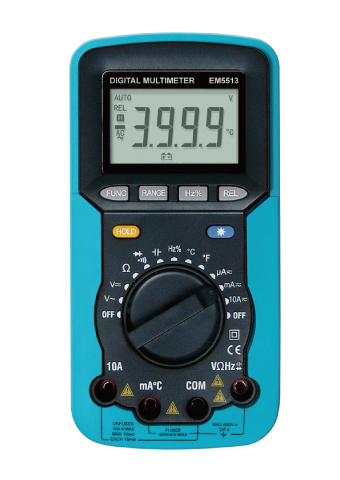

Model: EM5513
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
0
|

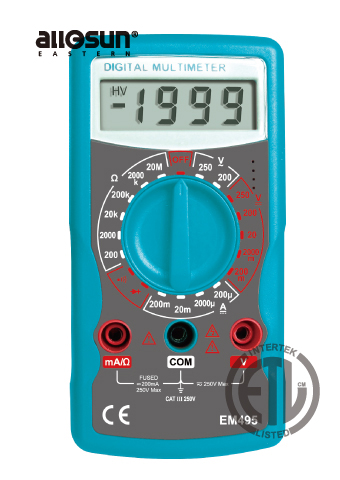

Model: EM495
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
This meter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category (CAT II 600V) and pollution degree 2.
● 3 1/2 digits LCD display, Max.reading 1999
● Automatic polarity indication
● Overload protection
● Low battery indication
CE Certification
Voltage DC:200m/2/20/200/250V
Voltage AC:200/250V
Current DC:200μ/2m/20m/200mA
Resistance:200/2k/20k/200k/2M/20MΩ
Continuity:Yes
Diode Check:2.8V/1mA
Power:9V battery (6F22)
Dimensions(W×L×T):66×127×26 mm
Weight:106g (with battery)
0
|
Model: EM130USB
USB LINK TO PC
Connect the USB data cable supplied with the meter to the terminal on the top of the meter, connect the other end of this cable to the USB port of the computer. The computer will prompt that a new hardware has been found and the USB driver will be installed automatically.
FEATURES
·3 3/4-digit backlight LCD, with a max. reading of 3999
·Manual and autoranging mode
·Dwell Angle, Tacho measurement
·Relative mode
·Automatic power off
·Data-hold mode
·Polarity indication
·Overrange indication
·Low battery indication
·Link to PC
·With the USB2.0 interface, Data Cable and CD
SPECIFICATION
Dwell Angle: 2-3-4-5-6-8CYL (180°/120°/90°/72°/60°/45°
Tacho: 250~40kRMP, Highest Resolution: 1RMP
Voltage DC: 400m/4/40/250V
Voltage AC: 4/40/250V
Current DC: 400μ/4000μ/40m/400m/4/10A
Current AC: 400μ/4000μ/40m/400m/4/10A
Resistance: 400/4k/40k/400k/4M/40MΩ
Frequency: 5/50/500/5k/50k/200kHz
Capacitance: 50n/500n/5μ/50μ/100μ
Duty Cycle: 5%~95%
Temperature: -20~1000?C / -4~1832?F
Diode Check: approx. 1.5V
Continuity: Less than about 50Ω, more than about 120Ω
Power Supply: 9V(6F22) battery×1pc
Dimensions: 165×83×47 mm
Weight: Approx.300g (Without battery)
0
|

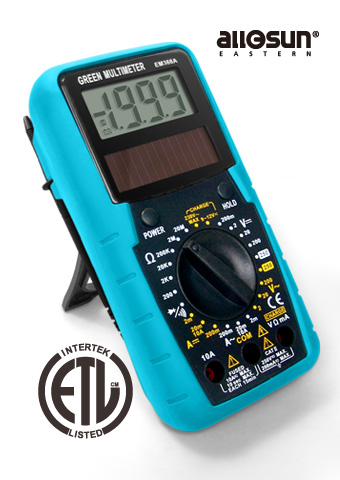

Model: EM366A
This meter has been designed according to IEC-61010 concerning electronic measuring instruments with a measurement category (CAT II 600V) and pollution degree 2.
Solar power supply
The EM366 hand-held environmentally friendly solar powered digital multimeter is 3 1/2-digit digital multimeter. It is with solar power supply, you don not need to worry about run out of battery any more. It can be operated easily and is an ideal measurement
● 3 1/2 digits LCD display, Max.reading 1999
● LCD display with backlight function
● 6 Functions for DCV, ACV, DCA, ACA, and OHM
● Automatic polarity indication
● Data-hold mode
● Overload protection
● Low battery indication
CE Certification
Voltage DC:200m/2/20/200/600V
Voltage AC:2/20/200/600V
Current DC:2m/20mA/200mA/10A
Current AC:2m/20mA/200mA/10A
Resistance:200/2k/20k/200k/2MΩ/20MΩ
Diode Check:Yes
Continuity:Yes
0
|

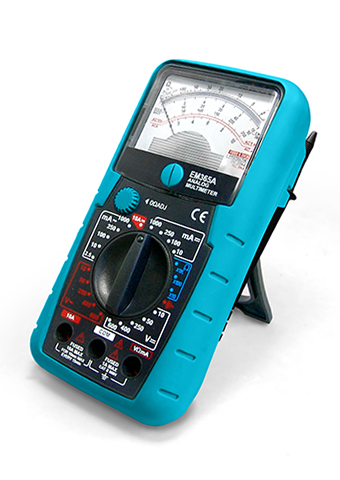

Model: EM365A
[2008 catalog 2] [Page 35]
0
|

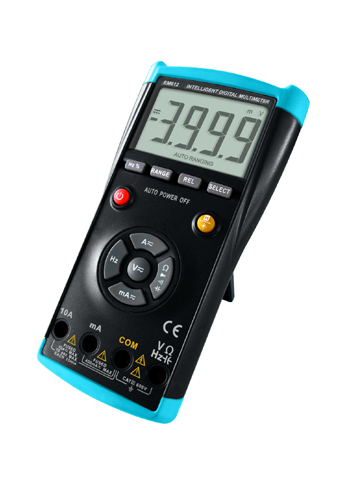

Model: EM612
[2008 catalog 2] [Page 14]
4000 counts LCD
CAT III
CE
[2008 NEW PRODUCT CATALOG ][Page 04]
IP56 rating / CE
The EM612 is compact 3 3/4 digits digital
multimeter. It can be operated easily and is an
ideal measurement tool.
Voltage DC:400m/4/40/400/1000V
Voltage AC:4/40/400/750V
Current DC:40m/400m/4/10A
Current AC:40m/400m/4/10A
Resistance:400/4k/40k/400k/4M/40M
Capacitance:40n/400n/4 /40 /100 F
Frequency:10Hz~10MHz
Duty cycle:1.0%~99.0%
Diode Check:approx. 1.0V
Continuity:~30
Dimensions/Weight:96×188×43 mm / 390g
0
|

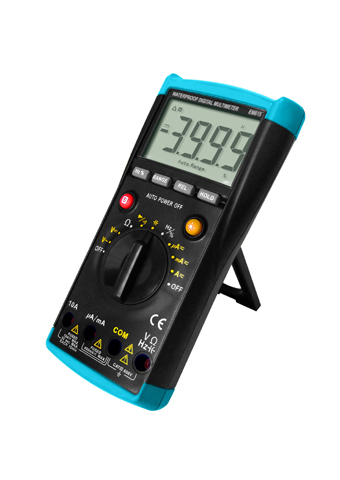

Model: EM615
[2008 catalog 2] [Page 13]
4000 counts LCD
CAT III
CE
[2008 NEW PRODUCT CATALOG ][Page 04]
IP56 rating / CE
EM615 DMM features polarity indication, data hold,
overrange indication, waterproof and dustproof design
of IP56 rating, and so on.
Voltage DC:400m/4/40/400/600V
Voltage AC:4/40/400/600V
Current DC:400/4m/40m/400m/10A
Current AC:400/4m/40m/400m/10A
Resistance:400/4k/40k/400k/4M/40M
Capacitance:4n/40n/400n/4 /40 /100 F
Frequency:10/100/1k/10k/100kHz
Duty Cycle:0.1% to 99.9%
Continuity:Less than 50 , more than 120
Diode Check:approx. 1.5V
Dimensions/Weight:96×188×43 mm / 390g
0
|

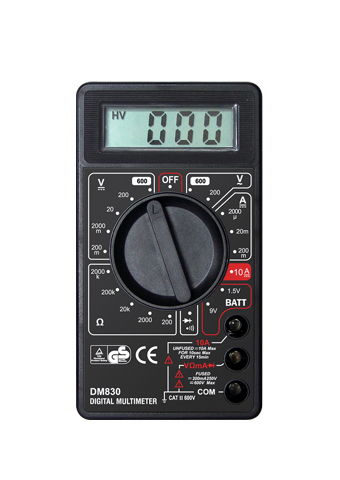

Model: DM830
- GS Marking -
GS marking, GS certification, GS approval, European directive and standards
·3 1/2 digits LCD, Max. reading 1999
·Low battery indication
·Overload protection
·Battery check function
Voltage DC:200m/2000m/20/200/300V
Voltage AC:200/300V
Current DC:2000μ/20m/200m/10A
Resistance:200/2000/20k/200k/2000kΩ
Diode Check:2.8V/1mA
Battery Check:1.5V, 9V
Power:9V battery (6F22)
Dimensions(W×L×T):70×126×28 mm
Weight:155g (with battery)
