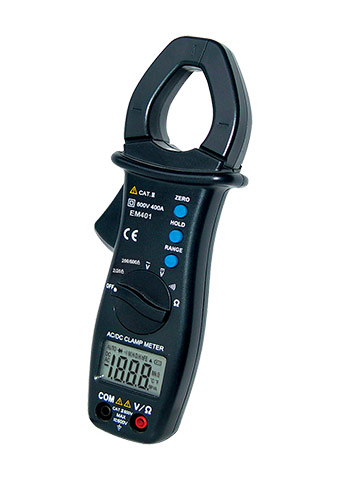

Model: EM401
[2007 catalog B] [Page 35]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·Low battery indication
·Overload protection
·Audible continuity
·Auto power off
·Auto range
CAT II
The instrument complies with CAT II 600.
CE
Voltage DC:200m/2/20/200/600V
Voltage AC:2/20/200/600V
Current AC:2/20/200/600A
Resistance:200/2k/20k/200k/2M/20MΩ
Power:1.5V(AA) Battery × 2
Dimensions(W×L×T):76×195×36 mm
Weight:260g (with battery)
454
|

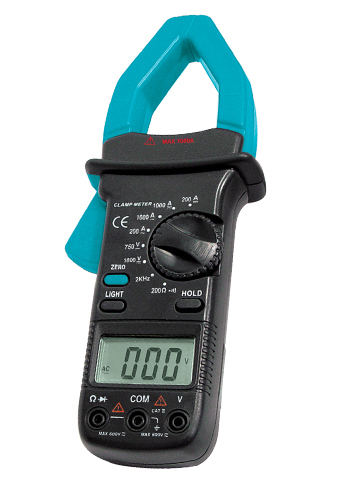

Model: EM204
[2007 catalog B] [Page 37]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·Low battery indication
·Overload protection
·Audible continuity
DCA & ACA Measurement
CAT III
The instrument complies with CAT III 1000
Voltage DC:1000V
Voltage AC:750V
Current DC:200/1000A
Current AC:20/200/1000A
Resistance:200kΩ
Frequency:2KHz
Power:9V battery (6F22)
Dimensions(W×L×T):99×250×436 mm
Weight:400g (with battery)
370
|

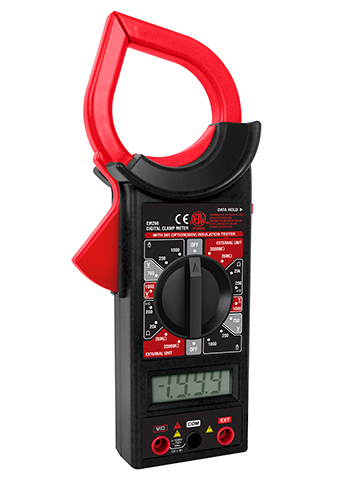

Model: EM266
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
[2007 catalog B] [Page 37]
·3 1/2 digits LCD,Max.reading 1999
·Data-hold function
·Max.current during a certain process
·Low battery indication
·Overload protection
·Audible continuity
CAT II
The instrument complies with CAT II 1000
CE
Voltage DC:1000V
Voltage AC:750V
Current AC:200/1000A
Resistance:200/20kΩ
External unit:20M/2000MΩ
(with DT261)
Power:9V battery (6F22)
Dimensions(W×L×T):69×229×38 mm
Weight:310g (with battery)
180
|

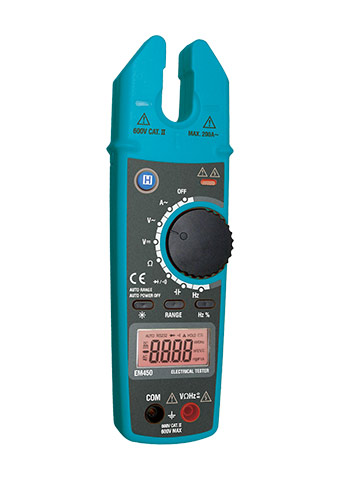

Model: EM450
[2007 catalog B] [Page 34]
Its best advantage is the ease to measure AC current by the open jaw. For AC current measurement, the AC current’s frequency can be up to 400Hz.
·3999 counts LCD Display, updates 2-3/sec, backlight function.
·Test leads can be inserted on groove of back of the tester.
·Audible and light alarm, auto power off, Auto and manual range, data-hold function
CAT II
The instrument complies with CAT II 600.
Open Jaw
CE
Voltage DC:400m/4/40/400/600V
Voltage AC:4/40/400/600V
Current AC:200A
Capacitance:40n/400n/4μ/40μ/100μF
Resistance:400Ω/4k/40k/400kΩ/4MΩ/40MΩ
Frequency:10/100/1k/10k/100kHz
Continuity:Yes
Diode Check:Yes
Duty Cycle:0.1% to 99.9%
Power:1.5V(AA) × 2
Dimensions(W×L×T):66×212×33 mm
Weight:200g (with battery)
147
|
Model: EM405
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·DCA & ACA measurement
·Low battery indication
·Overload protection
CAT III
The instrument complies with CAT III 600.
DCA & ACA
CE
Search for products
Search
Featured pruducts
EM400
EM450
EM431
EM204
EM203
Digital Clamp Meter more
+ Interest
EM400
EM580A
DT910B
DT831
EM30
51AEM400 DIGITAL CLAMP METER/Digital Clamp Meter
Picture of E-Sun EM400
Features
[2007 catalog B] [Page 35]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·DCA & ACA measurement
·Low battery indication
·Overload protection
·Audible continuity
CAT III
The instrument complies with CAT III 600.
DCA & ACA
Specifications
Voltage DC:400m/4/40/400/600V
Voltage AC:400m/4/40/400/600V
Current DC:40/100A
Current AC:40/100A
Resistance:400/4k/40k/400k/4M/40MΩ
Continuity:Yes
Diode Check:Yes
Power:1.5V(AAA)× 2
Dimensions(W×L×T):72×226×35 mm
Weight:220g (with battery)
124
|

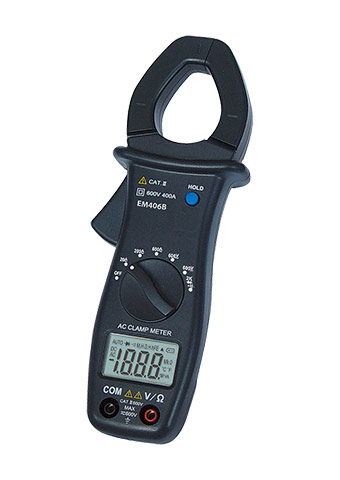

Model: EM406B
[2007 catalog B] [Page 36]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·Low battery indication
·Overload protection
·Audible continuity
CAT II
The instrument complies with CAT II 600.
CE
Voltage DC:600V
Voltage AC:600V
Current AC:20/200/600A
Resistance:2kΩ
Diode Check:3.2V/1.2mA
Power:1.5V(AAA) Battery × 2
Dimensions(W×L×T):76×195×36 mm
Weight:260g (with battery)
0
|
Model: EM306A
[2007 catalog B] [Page 39]
·3 1/2 digits LCD, Max. reading 1999
·Data-hold function
·Low battery indication
·Overload protection
CAT II
The instrument complies with CAT II 600.
Mini Size
Voltage DC:600V
Voltage AC:450V
Current AC:20/200/400A
Resistance:2k?/200k?
Diode Check:2.8V/1mA
Power:CR2032×3
Dimensions(W×L×T):65×151×34 mm
Weight:127g (with battery)
0
|

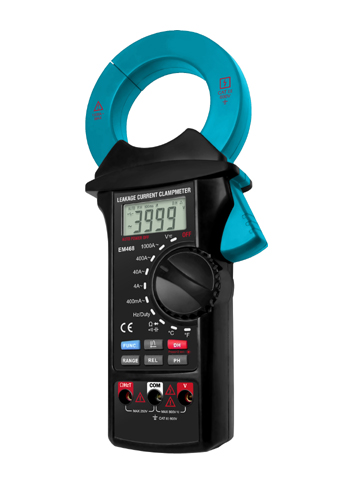

Model: EM468A
[2008 catalog C] [Page 29]
CE
It can measure leakage current to several milliamperes.
GENERAL DESCRIPTION
EM468 is a 4000 count, 3 3/4-digit multifunctional autorange digital leakage current clamp meter. It can
measure ac current up to 1000A, and measure leakage current to several milliamperes. When measuring current,
you can select frequency range or peak measurement.
FEATURE
Frequency measurement of voltage
input or current input
Data-hold funciton
Relative measurement
Manual range/Autorange
Peak hold (only for AC current )
Frequency range selection (40-1kHz or
50-60Hz,only for AC current )
Voltage DC:400m/4/40/400/600V
Voltage AC:4/40/400/600V
Current AC:400m/4/40/400/1000A(40~1kHz)
W:400/4k/40k/400k/4M/40MΩ
Capacitance:50n/500n/5μ/50μ/100μF
Frequency:5/50/500/5k/50k/500kHz(voltage)
50/500/5kHz(current)
Duty Cycle:5%~95%
Temperature:-20~750°C/-4~1382°F
Diode Check:YES
Continuity:YES
0
|

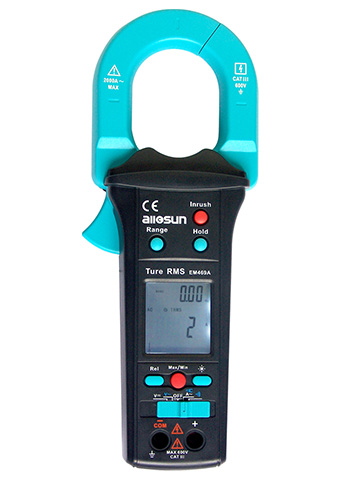

Model: EM469A
EM469A is true RMS digital clamp meters with dual display. It can be used to measure DC voltage, true RMS AC voltage, true RMS AC current, and continuity. It is easy to operate and are ideal measurement tool.
- Dual display. Frequency and max. or min.value can be shown simultaneously
- The digital display sampling rate is 2.8 times/sec, the analog bar graph updates at 28 times/sec
- 6600 counts LCD didplay
- Measures true-rms AC voltage and true-rms AC current
- The max. measurable current for the clamp is 2000A
- Overload alarm feature for each range
- Surge current measurement function is provided
DCV: 660.0mV/6.600V/66.00V/610.0V
ACV: 6.600V/66.00V/610.0V
ACA(Clamp): 2500A
Inrush Current: 2000A
Continuity
0
|

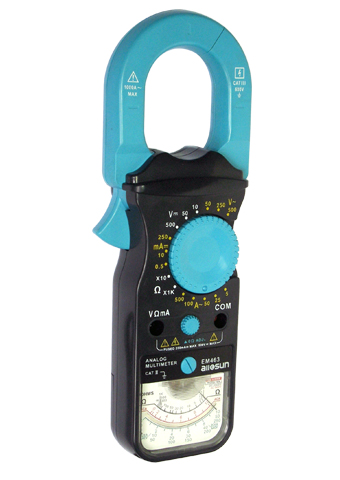

Model: EM463A
CLAMP
Clamp design, easy to use
TEMP. MEARUREMENT
-20°C~150°C
0Ω ADJUSTER KNOB
It is for zeroing for resistance measurements
EM463A, SPECIFICATION
Voltage DC: 10/50/500/1000V
Voltage AC: 50/250/500/1000V
Current AC: 25/100/500/1000/2000A
Resistance: ×1Ω/×100Ω/×1kΩ
Temperature: -20°C~150°C
0
|

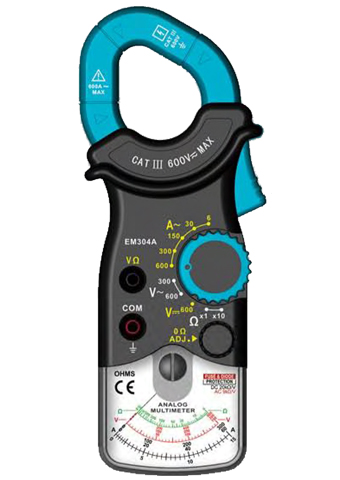

Model: EM304A
PORTABLE
Mini size, easy to car
0Ω ADJUSTER KNOB
It is for zeroing for resistance measurements
EM304, SPECIFICATION
Voltage DC: 600V
Voltage AC: 300/600V
Current AC: 6/30/150/300/600A
Resistance: ×1Ω/×10Ω
0
|

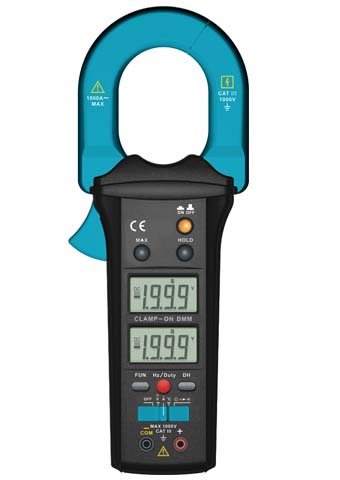

Model: EM467A
FEATURES
● Autoranging
● Dual LCD display for simultaneous measurement of Current and Voltage, Current and Resistance, Current and Temperature, and etc
● Lock the maximum value of ACA
● 3 1/2-digit for clamp function
● 3 3/4-digit for DMM function
● Data-hold mode
● Easy single switch for any function selection
● Auto power off
● Low power indicator
● CAT III, overload protecti
EM467A SPECIFICATION
Current AC (Clamp-on): EM467A: 200/1000A
Current DC mA: 40m/400mA
Current AC mA: 40m/400mA, Frequency: 40~400Hz
Voltage DC: 400m/4/40/400/600V
Voltage AC: 4/40/400/600V
Resistance: 400/4k/40k/40M/40MΩ
Capacitance: 4n/40n/400n/4μ/40μ/100μF
Temperature: -20~1000°C
Continuity: Less than about 30Ω
Diode Check: 2V/0.6mA
Power Supply: 9V(6F22) battery ×1pc
Dimensions: 260×101×41mm
Weight: Approx. 360g (Without battery)
0
|

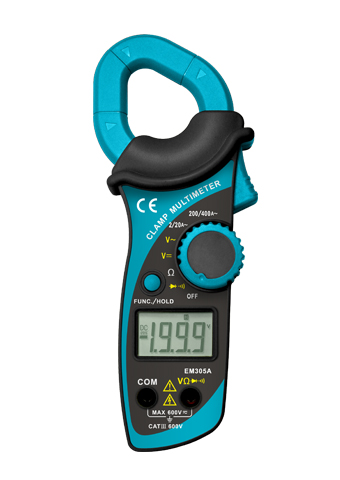

Model: EM305A
- US ETL LISTED Marking -
US ETL LISTED marking, ETL certification, ETL approval, US directive and standards
FEATURES
● 3 1/2-digit LCD, with a
● max. reading of 1999
● Autoranging
● IEC-61010 CATIII, Overload protection
● Data-hold function
● Zeroing function
SPECIFICATION
Voltage DC: 200m/2/20/200/600V
Voltage AC: 2/20/200/600V
Current AC: 2/20/200/600A
Resistance: 200/2k/20k/200k/2M/20MΩ
Diode Check: approx. 1.5V
Continuity: <30Ω
Max. measurable conductor: ?32mm
Power: 3V(CR2032) battery ×2pcs
Dimensions: 155×65×34 mm
Weight: 220g (Without battery)
Accessories: Test Lead, Users Manual
0
|
Model: EM467C
0
|

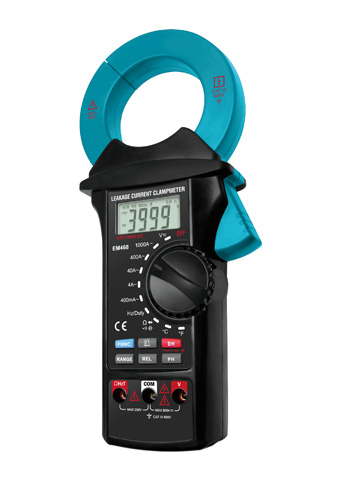

Model: EM468B
0
|
Model: EM465A
|

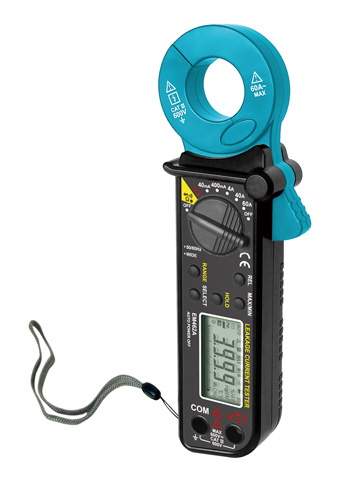

Model: EM462B
|
Model: EM4326
JAWS
Used to clamp the conductor for AC current measurements. The conductor should be positioned at the center of the jaws. Jaw Opening Capability: 25mm
GENERAL SPECIFICATIONS
Display: 3 1/2 digits LCD, with a max. reading of 1999
Overrange Indication: Only figure "1" shown on the display
Sampling Rate: Approximate 3 times/sec
Jaw Opening Capability: 25mm
Max. Measurable Conductor: 5mm
Battery: 1.5 battery, AAA or equivalent, 2 pieces
Low Battery Indication: Yes
Size: 185×74×40mm
Weight: about 195g (including battery)
|
Model: EM4370
● Automatically ranging true mean squared (TRMS) technology for increased accuracy
● Non-contact voltage detection
● Application: Clamp measures DC / AC Current
● Work light stays illuminated through all selections
● 3 5/6 digits backlight LCD, Max. reading 1999
● Data-hold mode
● Relative mode
● MIN MAX recording mode
● Automatic power off
● Low power indicator
● CAT III 600V
DC Voltage:600m/6/60/600v
AC Voltage:6/60/600v
DC Current:60/600A
AC Current:60/600A
Resistance:600/6K/60K/600K/6M/60MΩ
Frequency:9.999/99.99/999.9/9.999K/99.99K/999.9K/9.999MHz
Duty Cycle:5%-95%
Capacitance:6n/60n/600n/6μ/60μ/600μ/6m/60mF
Battery: 1.5V battery, AAA or equivalent, 3 pieces
Operating Altitude: 0 to 2000 meters
Size: 216mm X 71mm X 43mm
Weight: About 253g ( including batteries )
0
|
Model: EM4650
● Non-contact AC voltage detection
● Bar graph, measurement unit indication, and backlight
● Sampling rate of about 3 times/sec
● Automatic polarity indication
● Autorange mode
● Data Hold mode
● Relative mode
● MIN MAX mode
● True-RMS measurement
● Full-range overload protection
● Low power consumption
● CATIII 1000V
AC Voltage: 6V/60V/600V/750V
DC Voltage: 6V/60V/600V/1000V
DC Current: 60A/600A/1000A
AC Current: 60A/600A/1000A
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Frequency(with the clamp): 40.00Hz - 99.99Hz/100.0Hz - 999.9Hz Frequency(with Test Leads): 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHzDuty Cycle: 5% ~ 95%
Capacitance (use Relative mode): 40.00nF/400.0nF/4.000μF/40.00μF/400.0μF/4000μF
Diode Test: The approximate forward voltage drop of the diode will be displayed.
Continuity Test: The built-in buzzer will sound if the resistance is less than about 20Ω.
Temperature: -20°C~0°C/0°C~400°C/400°C~1000°C, -4°F~32°F/32°F~752°F/752°F~1832°F
0
|
